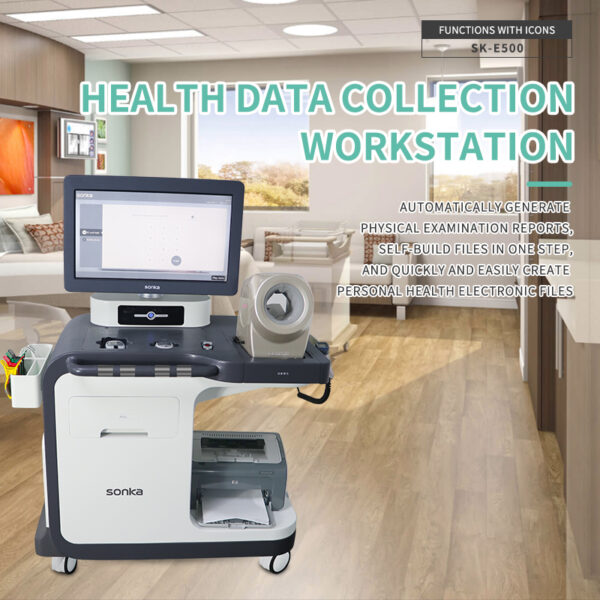

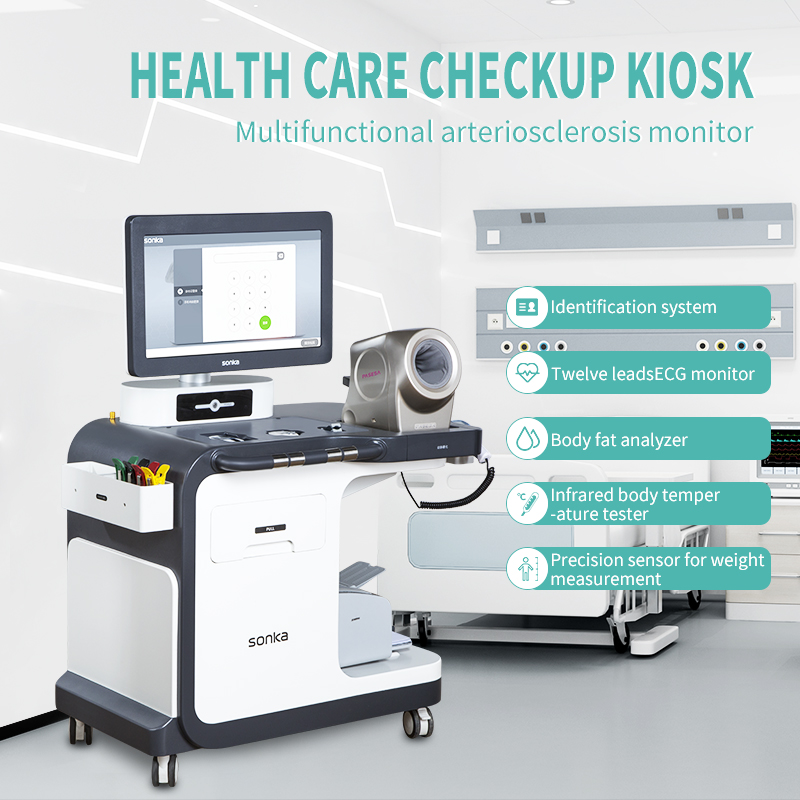

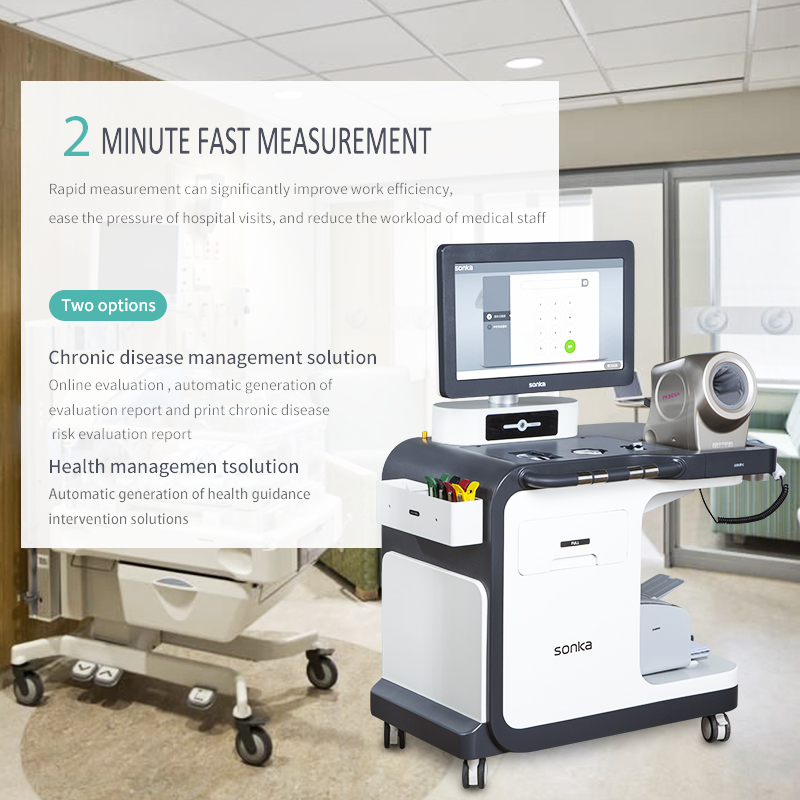

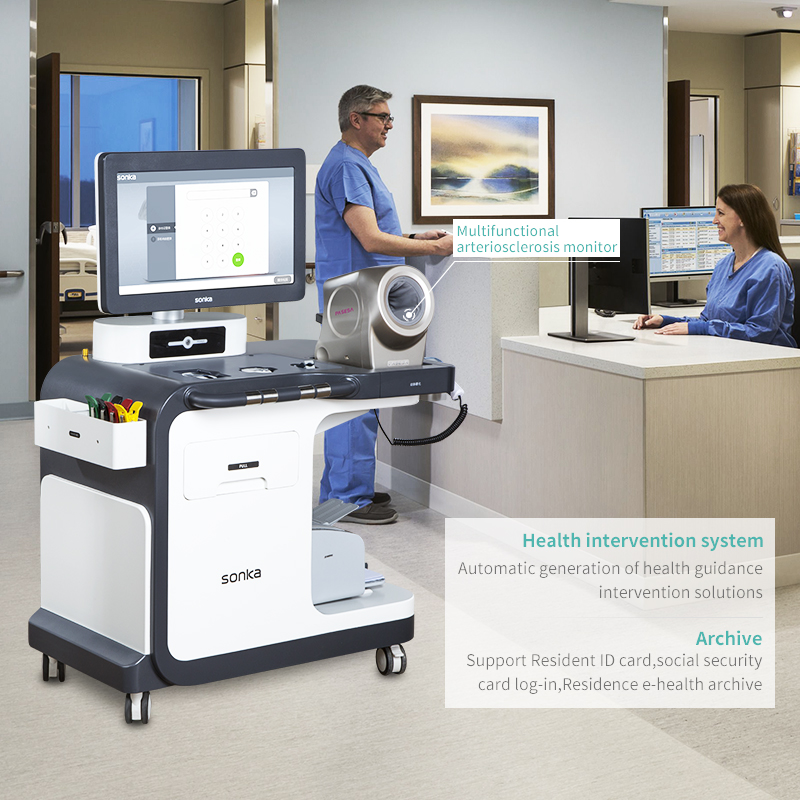

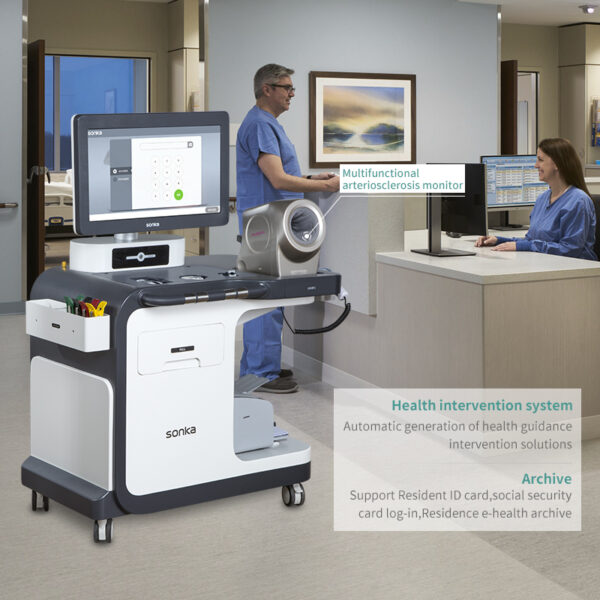

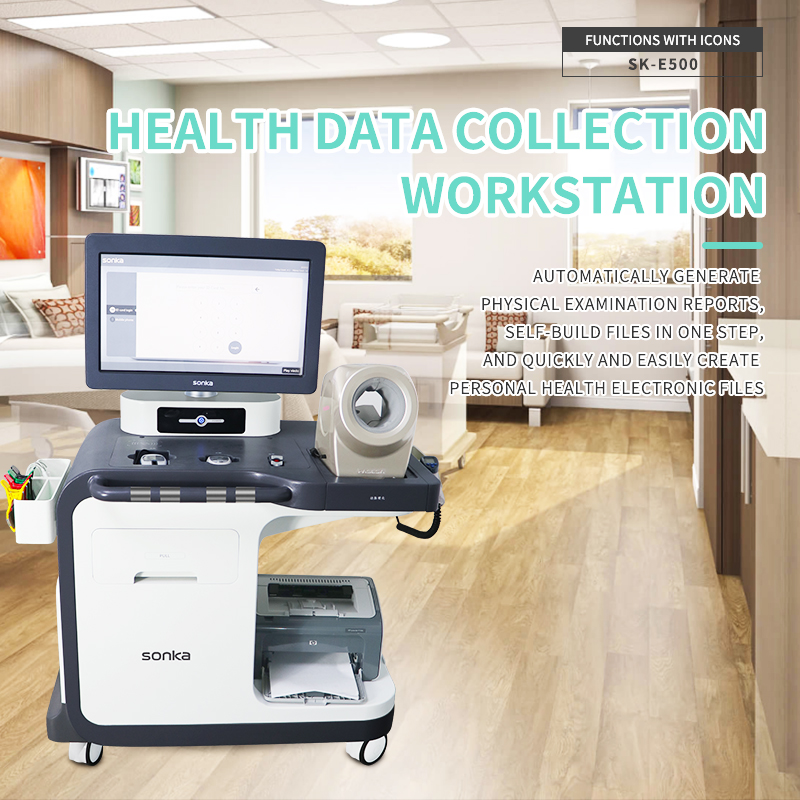

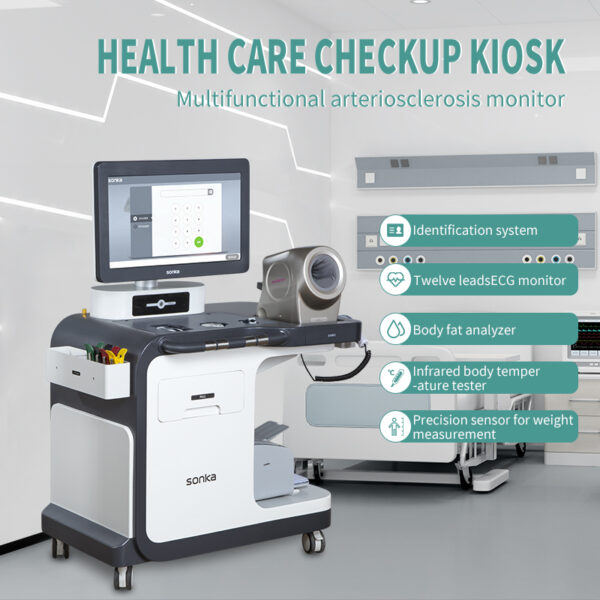

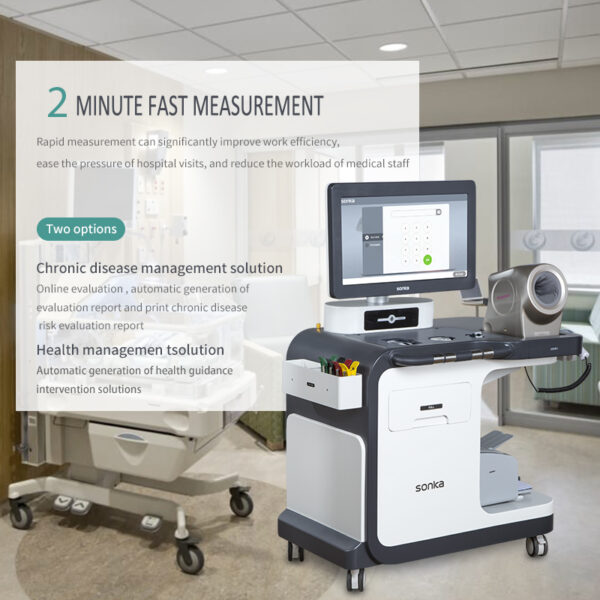

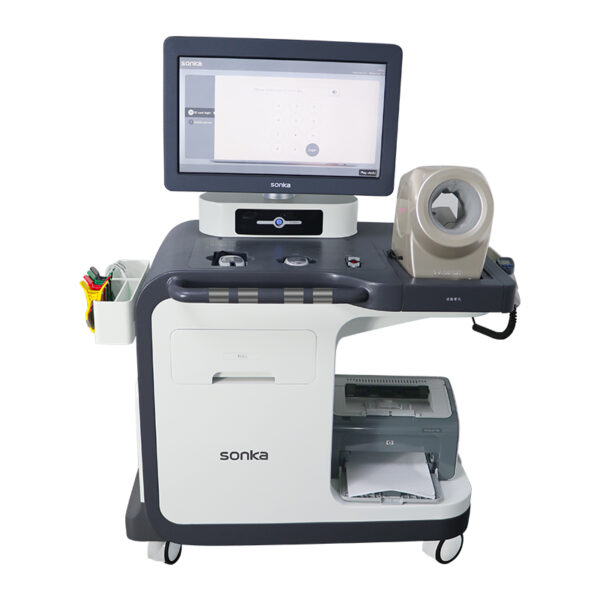

body check machine
Module Number | SK-E500(SONKA Medical) | |
Dimensions | Package dimensions: 480*360*220mm | |
Gross weight:8.2kg Net weight:4.8kg | ||
Category | Descriptions | Parameters |
Identification login | Login methods | Any type of reader can be integrated,this is customized modification |
Psychological evaluation | Customized function | Symptom checking list 90 questionnaire list with evaluation report |
Vision, teeth, WHR | Manual input results, could be customized | |
Height & Weight Scale | Module number | Need to connect with L08 Height weight scale |
Probe type | Ultrasonic probe | |
Height range | 70.0~210cm | |
Weight range | 5~200kg | |
Weight accuracy | ±0.1kg | |
Height accuracy | ±0.5cm | |
Blood pressure unit | Range | Pressure: 0-299mmHg/0-39.9Kpa |
Pulse: 40 -180 times/min | ||
accuracy | Pressure: < ±3mmHg(±0.5Kpd),Pulse: ±5% | |
Working temperature & humidity | +10℃~+40℃, 30%RH~85%RH | |
Transportation/Storage temperature & humidity | -20℃~+55℃, <93%RH | |
Operating atmospheric pressure | 80kpa~106kpa | |
Cuff circumstance | 15cm~42cm | |
Power supply | From control board | |
Blood oxygen probe | Sensor | Dual-wavelength LED |
Wave length | Glow: 663nm Infrared: 890nm | |
Range | 35%-100% | |
Max. Light output power | <2mW | |
Accuracy | Difference at ±2% within 70%-100% | |
Pulse rate error | 30-250bpm, error is ±2bpm or ±2%, take bigger value | |
Working temperature | 5℃-40℃ | |
Relative humidity | 15%-95%(non condensation) | |
Atmosphere pressure | 70kpa-106kpa | |
Power supply | From control board | |
Forehead infrared radiation thermometer | Test method | Infrared wireless hand-held temperature gun |
Accuracy | 0.1 ℃ | |
Operation & storage temperature | 10~40℃, 0~50℃ | |
Operation & storage humidity | ≤85% | |
Power supply | From control board | |
Dimension | 150*75*40mm | |
Weight | 180g | |
Human temperature range | 32.0~42.5℃ | |
Accuracy | ≤±0.3℃ | |
Power consumption | ≤120mw | |
Detection distance | 5 to 8 cm | |
Auto-off | after 8 seconds | |
Blood glucose, uric acid, total cholesterol analyzer | Specimen | Finger tip capillary whole blood |
Specimen voulumn | Blood glucose: 0.9uL, Total cholesterol: 10uL, Uric acid: 1uL | |
Measurement period | 10s (Blood glucose), 26s(Cholesterol), 15s(Uric acid) | |
Range | Blood glucose: 1.1-33.3mmol/L(20-600mg/dL) | |
Uric acid: 0.18-1.19mmol/L(3-20mg/dL) | ||
Cholesterol: 2.59-10.35mmol/L(100-400mg/dL) | ||
Accuracy: Blood glucose | “When result is less than 4.2mmol/L the difference is within ±0.83mmol/L when result is more than 4.2mmol/L the difference is ±20%” | |
Accuracy: Uric acid | (0.18mmol/L—1.19mmol/L), coefficient of variation value is within ±10%, measurement result’s difference between reference result is within ±20% | |
Accuracy: Total Cholesterol | (2.59mmol/L—10.35mmol/L),coefficient of variation value is within±15%, measurement result’s difference between reference result is within±20% | |
Hemoglobin tester | Specimen | Finger tip capillary whole blood |
Volume | 1uL | |
Test time | 8 seconds | |
Range | 7g/dL(4.3mmol/L)–26g/dL(16.1mmol/L) | |
21-78% Hct(calculation value) | ||
Storage transportation temperature | 10℃-30℃(50℉-86℉) | |
Test temperature | 10℃-40℃(50℉-104℉) | |
Storage transportation humidity | 10%-90% | |
Memory | 180 groups | |
Tester dimension | L 77*W 61*H 19mm | |
Altitude limit | <10000 feet(3048m) | |
Urine tester | Communication | Blue tooth |
Theory | Light reflection colorimetric method | |
Speed | 60 samples/hour, highest 300 samples/hour | |
Screen | LCD | |
Buttons | 5 key capacitive touching screen | |
Weight | 160g | |
Power | DC 5V,1A | |
Power adaptor | AC100-240V,50/60HZ | |
Dimensions | L 110mm*W 68mm*T 27mm | |
Power consumption | 2W | |
Life time | 5 years | |
“Test categories 11 (categories)” | “LEU–Leukocyte BLD–Occult blood NIT–Nitrite KET–Ketone body UBG–Urobilinogen BIL–Bilirubin PRO–Protein GLU–Glucose pH–pH value VC–Vitamine C SG–Specific gravity “ | |
ECG | Power input protection | Prevent tremor |
Leads | 12 leads or 6 leads | |
Analogue/Digit convert | 12 bit (precision) | |
Range | ±5mVpp | |
Time constant | ≥3.2s | |
Frequency response | 0.05Hz~150Hz(-3dB) | |
Calibration voltage | 1mV±3% | |
Sensitivity | 2.5, 5, 10, 20(mm/mV) | |
Input impedance | ≥50MΩ | |
Input loop current | <0.05uA | |
Noise level | <15uVp-p | |
Baseline adjustment | Automatic | |
Patient leakage current | <10uA(220V-240V) | |
Patient auxiliary current | <0.1uA(DC) | |
Filtering | EMG(Electromyography) filtering | |
25Hz/35Hz/45Hz/off | ||
Baseline filtering | ||
0.05/0.15/0.25/0.5Hz | ||
AC filter | ||
50Hz/60Hz | ||
Common mode rejection ratio | 100dB | |
Rhythmic lead | Random choose | |
Safety standard | IEC II/CF | |
Ultrasonic probe for Abdomen | Operating system and application | Android smart phone (SAMSUNG S8, HUAWEI MATE 10) / Windows tablet, computer, laptop |
Advantages | low power consumption, which can connected to android smart phone | |
Scanning mode | electric convex | |
Display mode | B, B/B, B/M, 4B | |
Gray scale | 256 | |
Scanning depth | maximum 240mm | |
TGC | 8TGC adjustments | |
Cine loop | 512 frames | |
Gain | 0-100dB adjustable | |
Language | English/Chinese | |
Central frequency | 3.5MHz(2.5-4.5MHz) | |
Probe port | USB | |
Colors | 9 | |
Image conversion | left/right, up/down | |
Application | OB/GYN, Urology, Abdomen, Emergency, and ICU | |
Net weight | 0.2KG | |
Ultrasound scan for superficial tissues | Operating system and application | Android smart phone (SAMSUNG S8, HUAWEI MATE 10) / Windows tablet, computer, laptop |
Advantages | low power consumption, which can connected to android smart phone | |
Scanning mode | electric linear | |
Display mode | B, B/B, B/M, 4B | |
Gray scale | 256 | |
Scanning depth | 30-120mm | |
TGC | 8TGC adjustments | |
Cine loop | 512 frames | |
Gain | 0-100dB adjustable | |
Language | English/Chinese | |
Central frequency | 7.5MHz(5-10MHz) | |
Probe port | USB | |
Colors | 9 | |
Image conversion | left/right, up/down | |
Application | Shallow application, ultrasound-guided percutaneous drainage Small parts, such as thyroid, joint, blood vessel and so on | |
Net weight | 0.2KG | |
Touch screen | Size | 10.1 inches |
Origin of coordinate | Right downside | |
Rohs standard | Compliance | |
Resolution | 1280(RGB)*800(WXGA) | |
HW ratio | 16:10 (width: height) | |
Pixel layout | RGB vertical layout | |
Dot pitch | 0.0565*0.1695mm (horizontal*vertical) | |
Pixel spacing | 0.1695*0.1695mm (horizontal*vertical) | |
Display area | 216.96*135.60mm (horizontal*vertical) | |
Visible area | 216.66*138.60mm (horizontal*vertical) | |
Dimension | 227.42*147.69mm (horizontal*vertical) | |
Mother board | CPU | RK3288 4 cores Cortex-A17, 1.8G Hz |
GPU | Mail-T764, Support TE,ASTC,AFBC | |
SDRAM | DDR3 2G(could change to 4G) | |
FLASH | EMMC FLASH 8GB/16G/32G, Support SATA disc, TF card Max. at 32G | |
OS | Android 5.1 | |
Display interface | “1 x HDMI 2.0 , Support 4K@60 frames output 1 x MIPI, 1 x EDP, 2 x LVDS LCD interfaces” | |
Camera interface | “1 x DVP camera(Max. 5Mpixel) 1 x MIPI-CSI camera (Max.13Mpixel )” | |
Touch screen | “I2C interface(Multi point resistance touch,Multi point capacitance touch). Support USBMulti point infrared touch,Multi point nano film touch, Multi point acoustic touch,Multi point optical touch” | |
Communication | RJ45, 100M/1000M ethernet port | |
WIFI, support 2.4G/5G WIFI, support WI-FI802.11 a/b/g/n protocol | ||
Bluetooth V2.1+EDR/Bluetooth 3.0/3.0+HS/4.0 | ||
Bluetooth V2.1+EDR/Bluetooth 3.0/3.0+HS/4.0 | ||
Interfaces | 4 channel serial ports,support serial port with flow control | |
4 channel I2C interfaces | ||
2 x USB2.0 HOST,1 x USB2.0 OTG | ||
1 channel SPI interface | ||
1 channel I2S interface | ||
1 channel ADC interface | ||
1 channel SDIO output | ||
3 keypads self programmed | ||
Real-time clock | Inbuilt real-time clock, support timing ON-OFF tablet | |
Watchdog | Support software, hardware watchdog | |
Audio | Support MP3,WMA,WAV, APE,FLAC,AAC, OGG,M4A,3GPP | |
Video | Support H264,VP8,MAV,WMV,AVS,263,MPEG4 with 1080P | |
Printer | “Printer 1: 58mm width ticket print, for text result(come with standard package) Printer 2: A4 printer, for ECG and Ultrosound image result(Seperate package)” | |
Power supply | Noise | Typical 35dB |
Voltage range | 100~240Vac | |
Frequency | 47~63Hz, typical 50Hz | |
Output voltage | 12.6Vdc | |
Output power | 25.2W |
