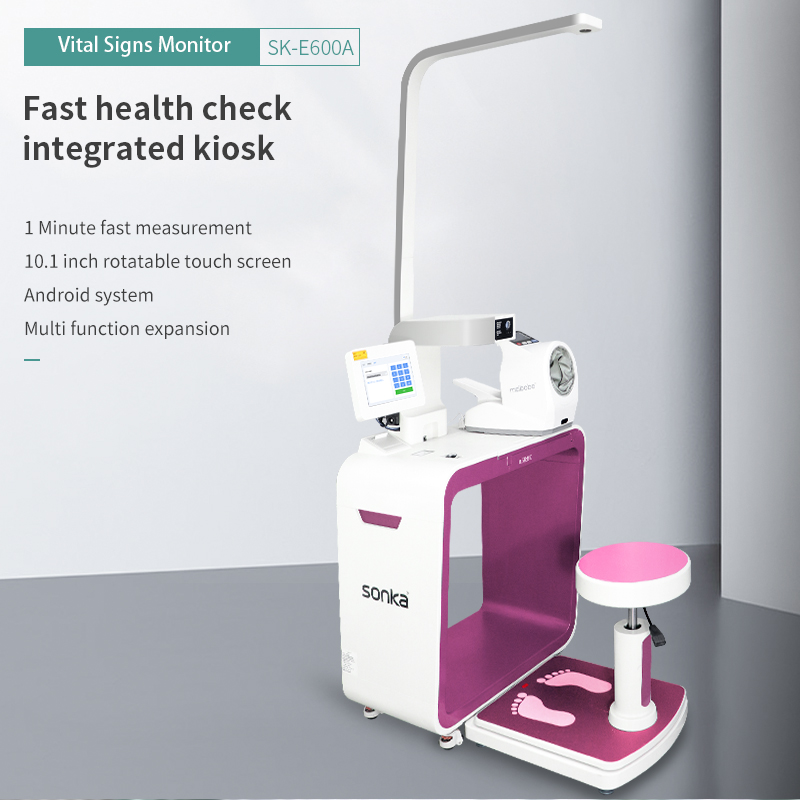

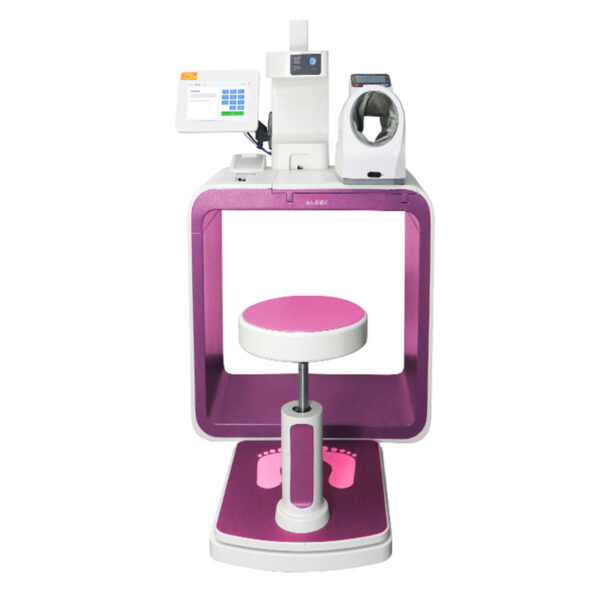

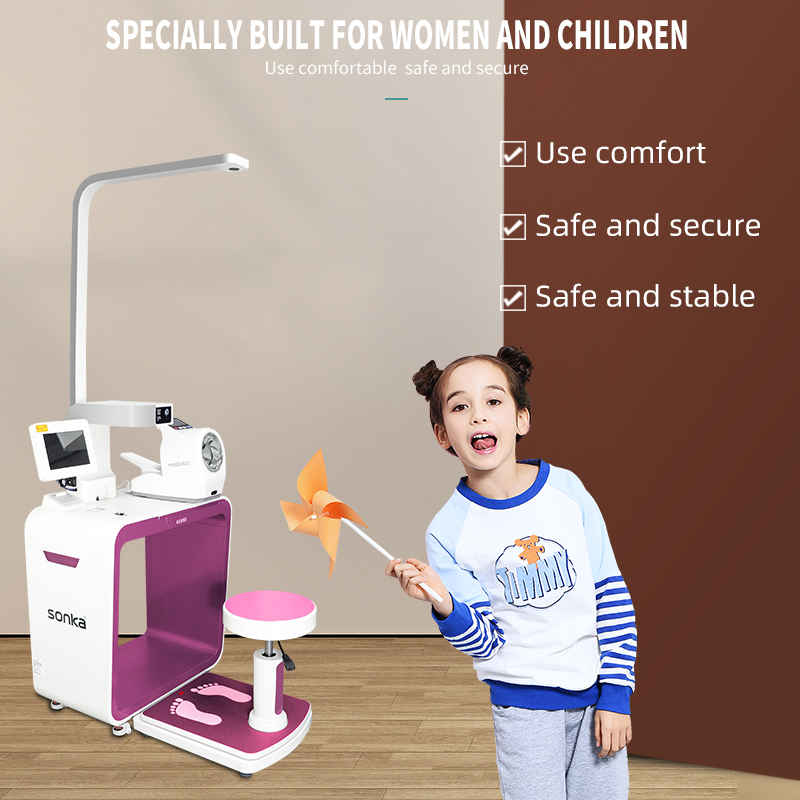

hospital kiosk
Model | SK-E600A | |
Level | ClassⅠ Grade B | |
Dimensions | Package dimensions:97*60*135CM | |
Package dimensions:118KG ,Net weight:78KG | ||
Product dimensions:80*112.4*237.5CM | ||
Mother board | CPU | 4 cores Cortex-A17,1.8GHz |
GPU | ARM Mali-T764 GPU | |
SDRAM | DDR3 2GB | |
SW Platform | Android 5.1 | |
Power | 12V-3A | |
Display interface | LVDS channels(1, 6 dual way, 8, 10 dual way )EDP interface,MIPI interface,HDMI 2.0 | |
Max. Resolution:3840*2160 | ||
Display screen | 10.1-inch capacitive multi-touch screen | |
Resolution:1280ⅹ3(RGB) ⅹ 800 | ||
Data Output Interface | LAN network interface,WIFI,4G | |
Connection | Support Ethernet/WIFI/Blue Tooth | |
Power adaptor | Type | LRS-50-3.3 |
Voltage /frequency range | 85~264V AC / (47Hz/63Hz) | |
Rated power/rated current | 33W/10A | |
DC Voltage output | 3.3V | |
Humidity range of operation( Storage temperature range) | 5℃~45℃(-10℃~+60℃) | |
ID card reader | Customized | |
Printer | Name | SPRT Thermal printer |
Printing Method | Thermal Line | |
Resolution | 8 dots/mm, 384 dots/line | |
Printing Speed | 100 mm/s | |
Effective Printing Width | 48mm | |
Paper Width | 57mm±0.5mm | |
Weight | 334g | |
Working temperature/humidity | 0~50℃/10~80% | |

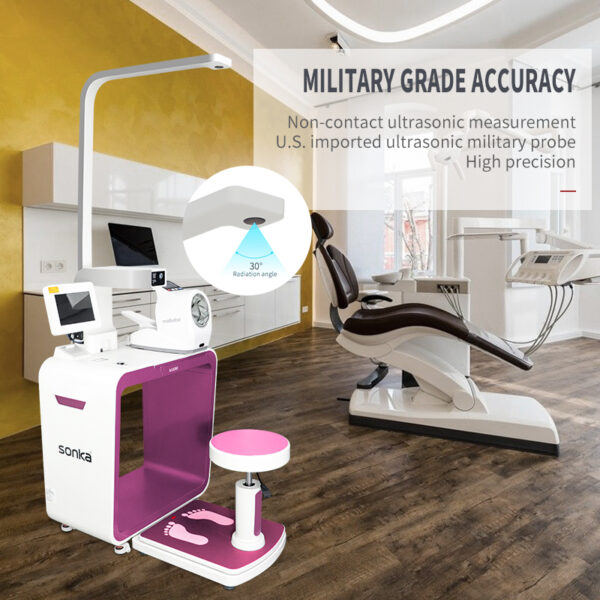

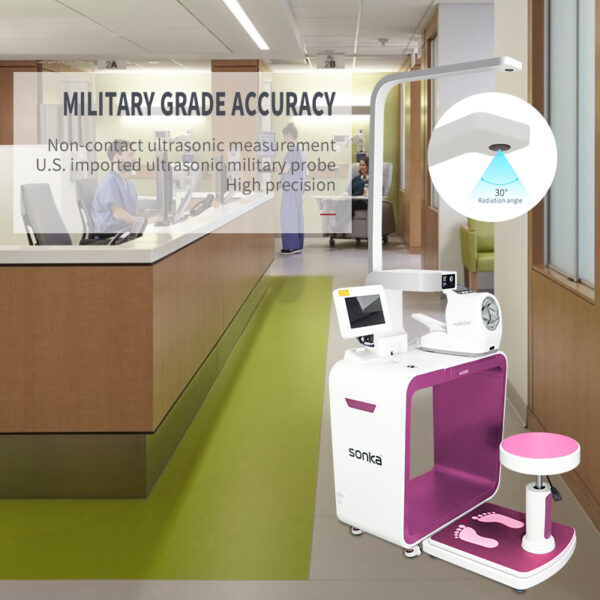

Height measurement | Configured body height | SONKA body height |
Measuring system | Ultrosonic | |
Range of measurement | 70.0~205cm | |
Verified precision | ±0.1cm | |
Body weight measurement | Configured body weight | SONKA body weight |
Measuring system | Resistance strain gauge | |
Body weight index | Automatic intelligent calculation of body mass index | |
Range of measurement | 300kg | |
Verified precision | ±0.1kg | |
Measurement of blood oxygen | Equipped with oximeter | Creative KS-CM01 |
sensor | Dual-wavelength LED | |
Wave length | Glow: 663nm Infrared: 890nm | |
Range | 35%-100% | |
Max. Light output power | <2mW | |
Measurement error | In the range of 70% to 100%, the measurement error is ±2% | |
Accuracy | Difference at ±3% within 70%-100% | |
Pulse rate error | 30-250bpm, error is ±2bpm or ±2%, take bigger value | |
Working temperature | 5℃-40℃ | |
Relative humidity | 15%-95%(non condensation) | |
Atmosphere pressure | 70kpa-106kpa | |
Power supply | Power adaptor | |

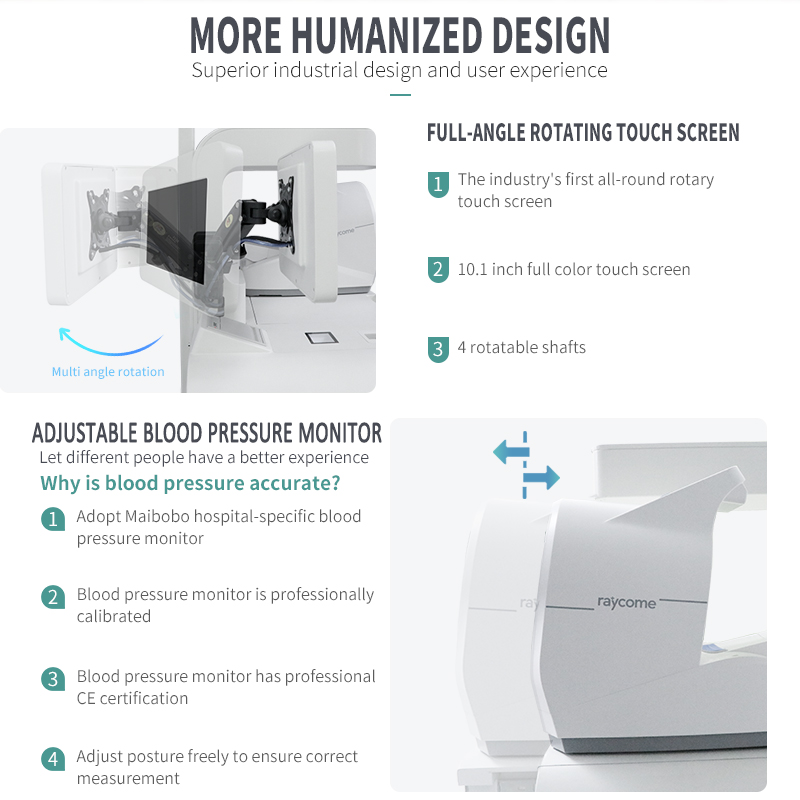

Blood pressure measurement | Model | RBP-9000 |
Measurement range | Pressure: 0 mmHg to 270 mmHg(0kPa~37kPa);Pulse: 40 to 180/min. | |
Accuracy | Pressure: ±2mmHg (±0.267kpa)Pulse: ±2% of display reading | |
Internal storage | Automatically save 100 medical records | |
Power source | AC 100-240V,50-60Hz,1.6-0.8A | |
Operating environment | 5℃~40℃ 15%RH~80%RH | |
Storage temperature/humidity | -20℃~+55℃,≤93%RH | |
Air pressure | 80Kpa~106Kpa | |
Storage air pressure | 50Kpa~106Kpa | |
Size | 471.5*402.0*309.0mm | |
Protective | Class I,Type B | |
Console weight | Approximately 8.0kg | |
Arm circumference | 17cm~42cm | |
QR Scan model | Model | JX20 |
Type | CMOS Sensor | |
Speed | 1/60s | |
Field of view | Opposite angle 84°,Horizontal angle 72°,Vertical angle54° | |
Accuracy | Two-dimension code≥7.5mil,One-dimension code≥5mil | |
Recognition | Close to 0-30CM(depends on the code) | |
Scan angle | Intersection angle360°,Elevation angle±55°,Deflection angle±55° | |
Support | International QR code standard: | |
QR Code,Data Matrix,PDF417 | ||
Contrast | Minimum:25% | |
Fill-in light | White | |
Size | 69*53*42mm | |
Scan mode | Command /sensing /trigger | |
Working temperature | -20℃~55℃ | |
Storage temperature | -40℃~80℃ | |
Humidity | 5%RH~95%RH | |
Ambient light | Max,100,000Lux | |
Voltage input | 5Pin socket&12Pin socket input:3-3.6V or3.6-16V | |
Operating current | <230mA(3.3V input),<190mA(5V input),<100mA(10V input) | |
Standby current | Approximately 5mA(3.3V input) | |

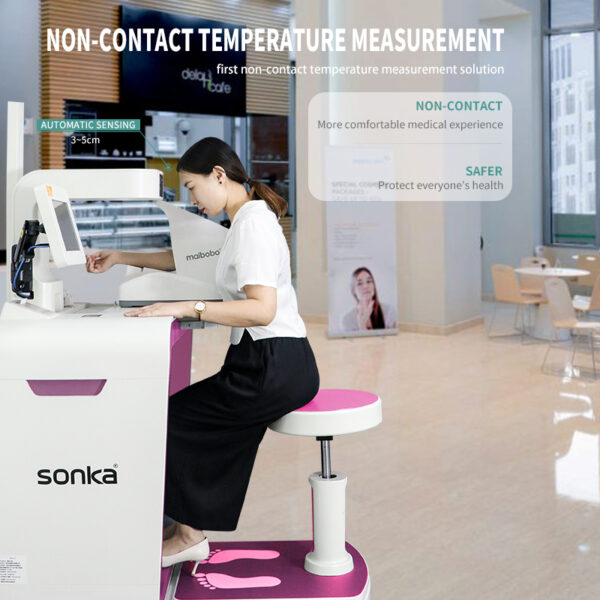

Body temperature module | Infrared thermometer | NC-9900 |
Display accuracy | ±0.1℃ | |
Operating temperature | 10~40℃ | |
Storage air pressure | 70kPa~106kPa | |
Relative humidity | ≤85%RH | |
DC power | DC 3.0V | |
Specification | 160*90*40mm | |
Weight | ≤100g | |
Range of body measurement | 32.0~42.5℃ | |
Accuracy | ±0.3℃ | |
Current drain | OFF≤20uA,ON≤20mA | |
Auto standby | 8s | |
Memory | 32 sets |
